API Flanged Globe Valve
Designed for full-bore flow control in high-pressure pipeline systems, this API flanged globe valve ensures reliable shut-off performance, minimal pressure loss, and long service life.
Widely used in oil & gas, petrochemical, and industrial pipeline applications.
Pressure Rating: 150 LB – 2500 LB, 1.0 – 42.0 MPa
Size Range: 1/2″ – 60″ (DN 15 – DN 1500)
Working Temperature: -29°C to 425°C
Standards: API, ANSI, ASME, DIN, JIS, BS
Materials: Carbon Steel, Stainless Steel, Alloy Steel, Special Alloys
Operation: Manual, Gear, Electric, Pneumatic
Product advantages
The fluid resistance is small, its resistance coefficient with section of equal length.
Simple structure, small volume, light weight.
Compact and reliable, the gate valve sealing surface of materials widely used plastic, sealing is good, have been widely used in the vacuum system.
Easy to operate, open and close quickly, from open to close just rotate 90°, is advantageous for the remote control.
Easy maintenance structure is simple, sealing ring, which generally remove replacement is more convenient.
- In the fully open or fully closed, the valve body and seat sealing surface and the dielectric isolation, medium through, does not cause the valve sealing surface erosion.
Applicable scope is wide, size from small to several millimeters, big to a few meters, from high vacuum to high pressure can be applied, the ball rotate 90 degrees, in the inlet and outlet should be completely present spherical, thereby cutting flow.
Major parts material and the performance
| Body / Bonnet | Valve Stem | Sealing Surface | Spacer (Ring) | Filler | Operation Temperature | Applicable Medium |
|---|---|---|---|---|---|---|
| WCB | 2Cr13 | CF8 / 13Cr / STL body material / nylon | Reinforced flexible graphite 13Cr SFB-208 soft steel F304 / F316 / F304L / F316L | Flexible graphite reinforced flexible graphite | ≤425 | Water vapor oil |
| WC1 | ≤425 | |||||
| WC6 | 38CrMoAl | ≤540 | ||||
| WC9 | 25Cr2MoV | ≤570 | ||||
| C5 / C12 | ≤540 | |||||
| CF8 | F304 | ≤200 | Urea nitrate acetate | |||
| CF8M | F316 | |||||
| CF3 | F304L | |||||
| CF3M | F316L |

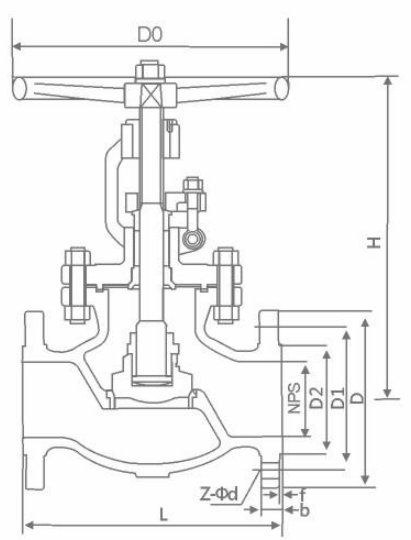

Class 150LB Main Connection Dimensions
| DN | SIZE | L | D | D1 | D2 | b | f | n-Φd | H | D0 |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2″ | 108 | 90 | 60.3 | 34.9 | 10 | 2 | 4-16 | 158 | 100 |
| 20 | 3/4″ | 117 | 100 | 69.9 | 42.9 | 10.9 | 2 | 4-16 | 163 | 100 |
| 25 | 1″ | 127 | 110 | 79.4 | 50.8 | 11.6 | 2 | 4-16 | 193 | 125 |
| 32 | 1-1/4″ | 140 | 115 | 88.9 | 63.5 | 13.2 | 2 | 4-16 | 250 | 160 |
| 40 | 1-1/2″ | 165 | 125 | 98.4 | 73 | 14.7 | 2 | 4-16 | 285 | 160 |
| 50 | 2″ | 178 | 150 | 120.7 | 92.1 | 16.3 | 2 | 4-19 | 325 | 180 |
| 65 | 2-1/2″ | 190 | 180 | 139.7 | 104.8 | 17.9 | 2 | 4-19 | 350 | 190 |
| 80 | 3″ | 203 | 190 | 152.4 | 127 | 19.5 | 2 | 4-19 | 380 | 200 |
| 100 | 4″ | 229 | 230 | 190.5 | 157.2 | 24.3 | 2 | 8-19 | 460 | 230 |
| 125 | 5″ | 254 | 255 | 215.9 | 185.7 | 24.3 | 2 | 8-22 | 630 | 250 |
| 150 | 6″ | 267 | 280 | 241.3 | 215.9 | 25.9 | 2 | 8-22 | 635 | 260 |
| 200 | 8″ | 292 | 345 | 298.5 | 269.9 | 29 | 2 | 8-22 | 765 | 290 |
| 250 | 10″ | 330 | 405 | 362 | 323.8 | 30.6 | 2 | 12-26 | 895 | 330 |
| 300 | 12″ | 356 | 485 | 431.8 | 381 | 32.2 | 2 | 12-26 | 1080 | 350 |
| 350 | 14″ | 381 | 535 | 476.3 | 412.8 | 35.4 | 2 | 12-29 | 1295 | 380 |
| 400 | 16″ | 406 | 595 | 539.8 | 469.9 | 37 | 2 | 16-29 | 1435 | 400 |
| 450 | 18″ | 432 | 635 | 577.9 | 533.4 | 40.1 | 2 | 16-32 | 1625 | 430 |
| 500 | 20″ | 457 | 700 | 635 | 584.2 | 43.3 | 2 | 20-32 | 1830 | 450 |
| 600 | 24″ | 508 | 815 | 749.3 | 692.2 | 48.1 | 2 | 20-35 | 2175 | 500 |
